CYLINDRICAL GLASS VESSEL

CYLINDRICAL GLASS VESSEL

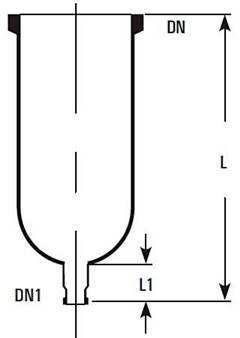

Cat.Ref.	Nominal Capacity	DN	DN1	L	L1
VZ5/4	5 L	100	25	700	175
VZ10/6	10 L	150	25	700	175
VZ20/9	20 L	225	25	750	175
VZ50/12	50 L	300	40	1000	175
VZ100/18	100 L	450	40	900	175
VZ150/16	150 L	400	40	1400	175
VZ200/18	200 L	450	40	1500	175
VZ300/24	300 L	600	50	1300	175

Cylindrical glass vessel of 50 Litres and above must be supported in a vessel holder.

Other accessories, like stirrers, baths, vessel holders etc, for cylindrical glass vessel can be supplied to special orders.

Cat.Ref.	DN	DN1	L	L1
VZA4	100	–	2×25	200
VZA6	150	–	2×40	200
VZA9	225	50	3×25	250
VZA12	300	80	3×40	250
VZA16	400	100	3×40	275
VZA18	450	100	4×40	275
VZA24	600	100	4×40	300

KETTLES

Kettles are similar to cylindrical glass vessels but having a reduced top neck.

Cat.Ref.	Nominal Capacity	DN	DN1	L	L1	d
KZ200	200 L	300	40	1400	175	485
KZ350	350 L	400	50	1500	175	620
